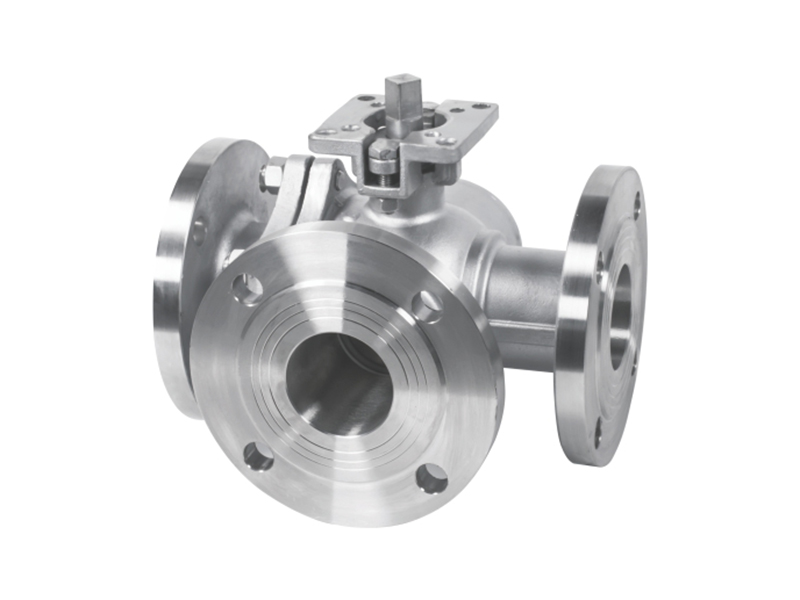

高平台三通法兰球阀
性能规范
| 设计标准 |
DIN 3357/1,2, EN 12516-1 |
| 法兰端 |
DINEN1092-1 PN10-PN40 |
| 壁厚 |
ASMEB16.34 |
| 检验与测试 |
DIN3230/3 EN 12266 |
材料列表
| 部件名称 |
材质 |
| 阀体 |
不锈钢CF8M CF8 |
| 阀盖 |
不绣钢CF8M CF8 |
| 间板 |
不锈钢CF8M CF8 |
| 阀杆 |
不锈钢SS316 304 |
| 线条 |
聚四氟乙烯PTFE |
| 止推垫片 |
聚四氟乙烯PTFE |
| 填料 |
不锈钢304 |
| 填料压套 |
不锈钢SS316 304 |
| 填料压盖螺母 |
不锈钢SS316 304 |
| 手轮 |
- |
| 金属垫片 |
不锈钢SS304 |
| 弹垫 |
不锈钢SS304 |
| 螺帽 |
不锈铜SS304 |

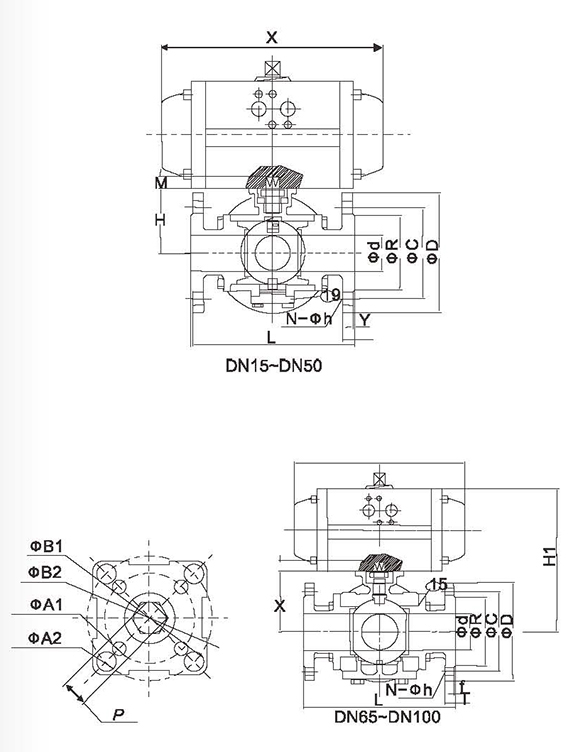

外形尺寸
| DN |
Size |
PN |
Φd |
L |
ΦR |
ΦD |
ΦC |
f |
T |
H |
H1 |
N |
oh |
P |
M |
ΦA1 |
ΦA2 |
ΦB1 |
ΦB2 |
X |
Y |
ISO 5211 E-电动器 |
| 15 |
1/2" |
10-40 |
15 |
150 |
45 |
95 |
65 |
2 |
16 |
53 |
150.0 |
4 |
14 |
9 |
9 |
6 |
6 |
36 |
42 |
144.0 |
72 |
F03-F04 |
50 |
006 |
80PSI |
| 20 |
3/4" |
10-40 |
20 |
165 |
58 |
105 |
75 |
2 |
18 |
57 |
155.5 |
4 |
14 |
9 |
9 |
6 |
7 |
36 |
50 |
144.0 |
72 |
F03-F05 |
50 |
006 |
80PSI |
| 25 |
1" |
10-40 |
25 |
181 |
68 |
115 |
85 |
2 |
18 |
68 |
198.0 |
4 |
14 |
11 |
11 |
6 |
7 |
42 |
50 |
164.0 |
84 |
F04-F05 |
63 |
|
80PSI |
| 32 |
1-1/4" |
10-40 |
32 |
190 |
78 |
140 |
100 |
2 |
18 |
72 |
205.5 |
4 |
18 |
11 |
11 |
6 |
9 |
42 |
70 |
164 |
84 |
F04-F07 |
63 |
008 |
80PSI |
| 40 |
1-1/2" |
10-40 |
38 |
212 |
88 |
150 |
110 |
3 |
18 |
85 |
228.5 |
4 |
18 |
14 |
14 |
7 |
9 |
50 |
70 |
228.5 |
108 |
F05-F07 |
88 |
008 |
80PSI |
| 50 |
2" |
10-40 |
49 |
230 |
102 |
165 |
125 |
3 |
20 |
92 |
234.0 |
4 |
18 |
14 |
14 |
7 |
9 |
50 |
70 |
234.0 |
108 |
F05-F07 |
88 |
015 |
80PSI |
| 65 |
2-1/2" |
10/16 |
63 |
290 |
122 |
185 |
145 |
3 |
18 |
107 |
261.0 |
4 |
18 |
17 |
17 |
9 |
11 |
70 |
102 |
261.0 |
123 |
F07-F10 |
100 |
020 |
80PSI |
| 25/40 |
22 |
8 |
| 80 |
3" |
25/40 |
75 |
340 |
138 |
200 |
160 |
3 |
24 |
119 |
273.0 |
8 |
18 |
17 |
17 |
9 |
11 |
70 |
102 |
314.0 |
151 |
F07-F10 |
125 |
020 |
80PSI |
| 10/16 |
310 |
20 |
| 100 |
4" |
25/40 |
99 |
386 |
162 |
235 |
290 |
3 |
24 |
150 |
345.0 |
8 |
22 |
22 |
22 |
N/A |
11 |
N/A |
102 |
345.0 |
151 |
F10 |
125 |
030 |
80PSI |
| 10/16 |
353 |
158 |
220 |
180 |
3 |
20 |
18 |
